What EPCs, Integrators & Industrial Buyers Struggle With
C&I storage projects fail on integration, certification, and lifecycle economics — not on cell price. These are the real procurement risks:
📈
Demand Charges Eat Margins
Peak demand charges can be 30–50% of a commercial electricity bill. Without storage, every 15-minute peak is billed for the entire month.
🔋
Undersized or Unbankable Systems
Wrong C-rate or cycle assumptions wreck project IRR. Buyers need warranted throughput (MWh over life), not just nameplate capacity.
🧯
Fire Safety & Permitting
AHJs and insurers demand IEC 62619 / UN38.3 documentation, BMS failure analysis, and fire suppression specs. Missing documents stall projects for months.
🔌
EMS / SCADA Integration Gaps
A battery that can’t speak Modbus TCP / CAN to the site EMS becomes a stranded asset. Closed protocols lock integrators out.
🌡️
Thermal Management at Scale
Above ~100kWh, passive cooling fails. Cell temperature spread >5°C accelerates aging and voids performance warranties.
🛠️
Long-Tail Service Risk
A 10-year asset needs spare modules, remote diagnostics, and a factory that will still answer in year 8 — not a trading company.
—-TECHNOLOGY COMPARISON
Containerized LiFePO4 vs Diesel & Lead-Acid: The Lifecycle Math
For EPCs and industrial energy managers, LiFePO4 storage beats both diesel backup and lead-acid banks on total cost of ownership and compliance.
| Parameter | Safecloud LiFePO4 | Diesel Genset / Lead-Acid Bank |
|---|---|---|
| Cycle Life / Lifetime | 6,000+ cycles · 10-year design life | Lead-acid: 1,000–1,500 cycles; diesel: fuel + maintenance forever |
| Round-Trip Efficiency | ≥95% DC, ~90% AC | Lead-acid: 75–80%; diesel: 30–40% fuel efficiency |
| Response Time | <100ms — UPS-grade switchover | Diesel: 10–60s start-up gap |
| Footprint (200kWh) | One outdoor cabinet, ~1.7m² | Lead-acid: dedicated battery room + ventilation |
| Peak Shaving Capability | Programmable via EMS, daily cycling | Lead-acid degrades fast under daily cycling |
| Emissions & Permitting | Zero on-site emissions | Diesel: emissions permits, fuel storage compliance |
| Thermal Management | Liquid / forced-air, ±3°C cell spread | Not applicable / passive only |
| Monitoring | Cloud EMS, Modbus TCP / CAN / IEC 104 | Manual inspection rounds |
| Warranty | 5–10 years with throughput guarantee | 1–2 years typical |
—–RECOMMENDED PRODUCTS
C&I Energy Storage Product Lines
From single outdoor cabinets to full 40ft containerized BESS — delivered with EMS integration documents, single-line diagrams, and certification packages for permitting.
Outdoor Cabinet Series
100kWh / 215kWh All-in-One Cabinet
- 5.12kWh per unit, parallel to 81.9kWh (16 units)
- CAN/RS485 — Growatt, Deye, Victron, Solis, SMA
- IP65 wall-mount, indoor / semi-outdoor
- Smart BMS + branded cloud app
- CE, IEC 62619, UN38.3 · 5-year warranty
Rack Cluster Series
100kWh / 215kWh All-in-One Cabinet
- 5.12kWh per unit, parallel to 81.9kWh (16 units)
- CAN/RS485 — Growatt, Deye, Victron, Solis, SMA
- IP65 wall-mount, indoor / semi-outdoor
- Smart BMS + branded cloud app
- CE, IEC 62619, UN38.3 · 5-year warranty

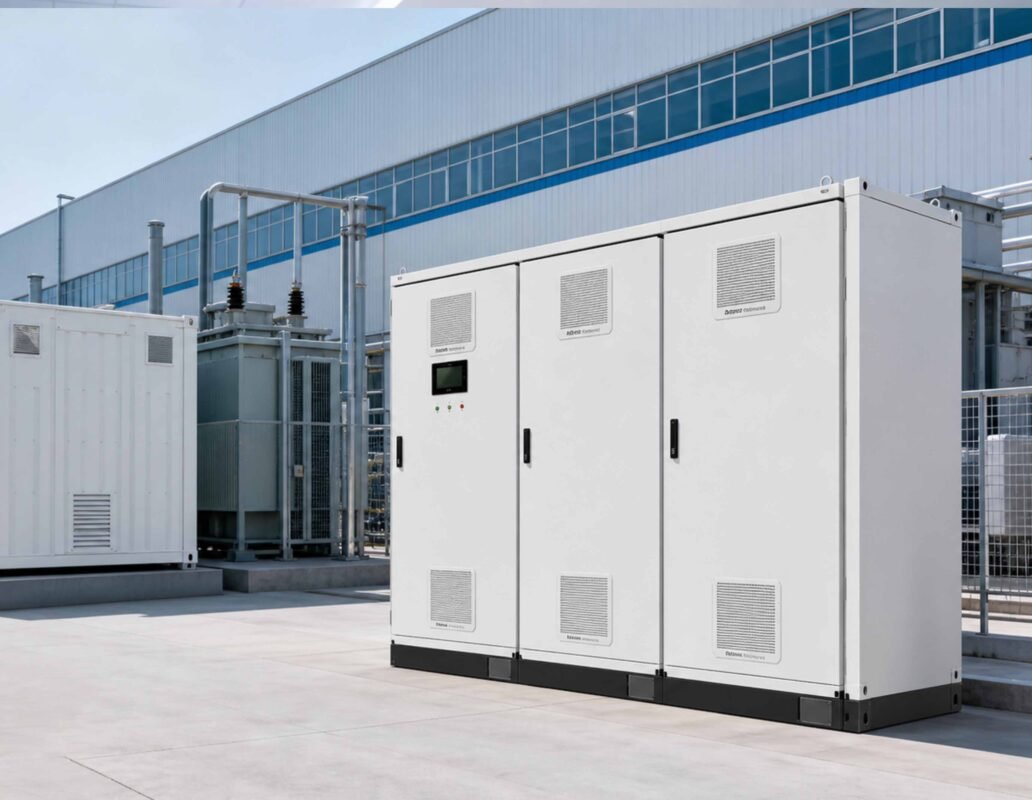

Outdoor BESS cabinet
Outdoor Cabinet Series
100kWh / 215kWh All-in-One Cabinet
- 5.12kWh per unit, parallel to 81.9kWh (16 units)
- CAN/RS485 — Growatt, Deye, Victron, Solis, SMA
- IP65 wall-mount, indoor / semi-outdoor
- Smart BMS + branded cloud app
- CE, IEC 62619, UN38.3 · 5-year warranty
——TECHNICAL SPECIFICATIONS
C&I System Specifications & Project Matrix
Reference configurations below. Voltage architecture, PCS pairing, cooling, fire suppression, and enclosure branding are engineered per project.
| System | Energy | Voltage | PCS | Cooling | Protection | Interface | Certs | Lead Time |
|---|---|---|---|---|---|---|---|---|
| SC-CAB-100 | 100kWh | 768V | 50kW | Forced air | Aerosol FS | Modbus TCP / CAN | IEC 62619 · UN38.3 · CE | 8–10 wks |
| SC-CAB-215 | 215kWh | 768V | 100kW | Liquid | Aerosol FS | Modbus TCP / CAN | IEC 62619 · UN38.3 · CE | 8–10 wks |
| SC-RACK-50 | 50kWh | 51.2V | External | Forced air | BMS multi-layer | SNMP / Modbus | IEC 62619 · UN38.3 · CE | 6–8 wks |
| SC-CON-500 | 500kWh | 768V | 250kW | Liquid | FM-200 / aerosol | SCADA / IEC 104 | IEC 62619 · UN38.3 · CE | 12–14 wks |
| SC-CON-1M | 1MWh+ | 768V | 500kW | Liquid | FM-200 / aerosol | SCADA / IEC 104 | Per project market | Per project |
—–WHY SAFECLOUD
Your OEM Manufacturing Partner, Not Just a Supplier
🏭
18 Years Manufacturing Experience
Established in 2007. 20,000m² Henan production base + Shenzhen HQ with full in-house R&D and BMS programming lab.
⚡
Grade-A Cells Only: CATL / EVE / CALB
Tier-1 LiFePO4 cells with manufacturer COA and batch traceability. Capacity deviation ≤2% across production batches.
🎨
Deep OEM Customization
Custom voltage, capacity, BMS firmware, enclosure, IP rating, communication protocol, branding, and retail packaging.
📋
Pre-Certified for 30+ Markets
CE, FCC, UN38.3, CB, RoHS, IEC 62619 — all transferable to your OEM brand. Our compliance team handles the paperwork.
HOW IT WORKS
From Inquiry to Delivery in 6 Steps
A streamlined OEM process designed for distributors and integrators who need speed and reliability.
Submit Inquiry
Share your application, voltage, capacity, and quantity requirements.
Technical Proposal
Spec sheet + BOM pricing from our engineers within 24–48 hours.
Sample & Approval
Prototype built and shipped in 7–20 days with full test report for your sign-off.
Mass Production
Production begins on approval. IQC → IPQC → OQC control at every stage.
QC & Inspection
Pre-shipment testing with batch report. Third-party inspection welcome.
Delivery & Support
Air or sea freight, certification transfer docs, warranty activated.
—–COMPLIANCE
Market-Ready Certifications for Global Distribution
All certifications are product-level and transferable to your OEM brand. Documentation provided with every order.

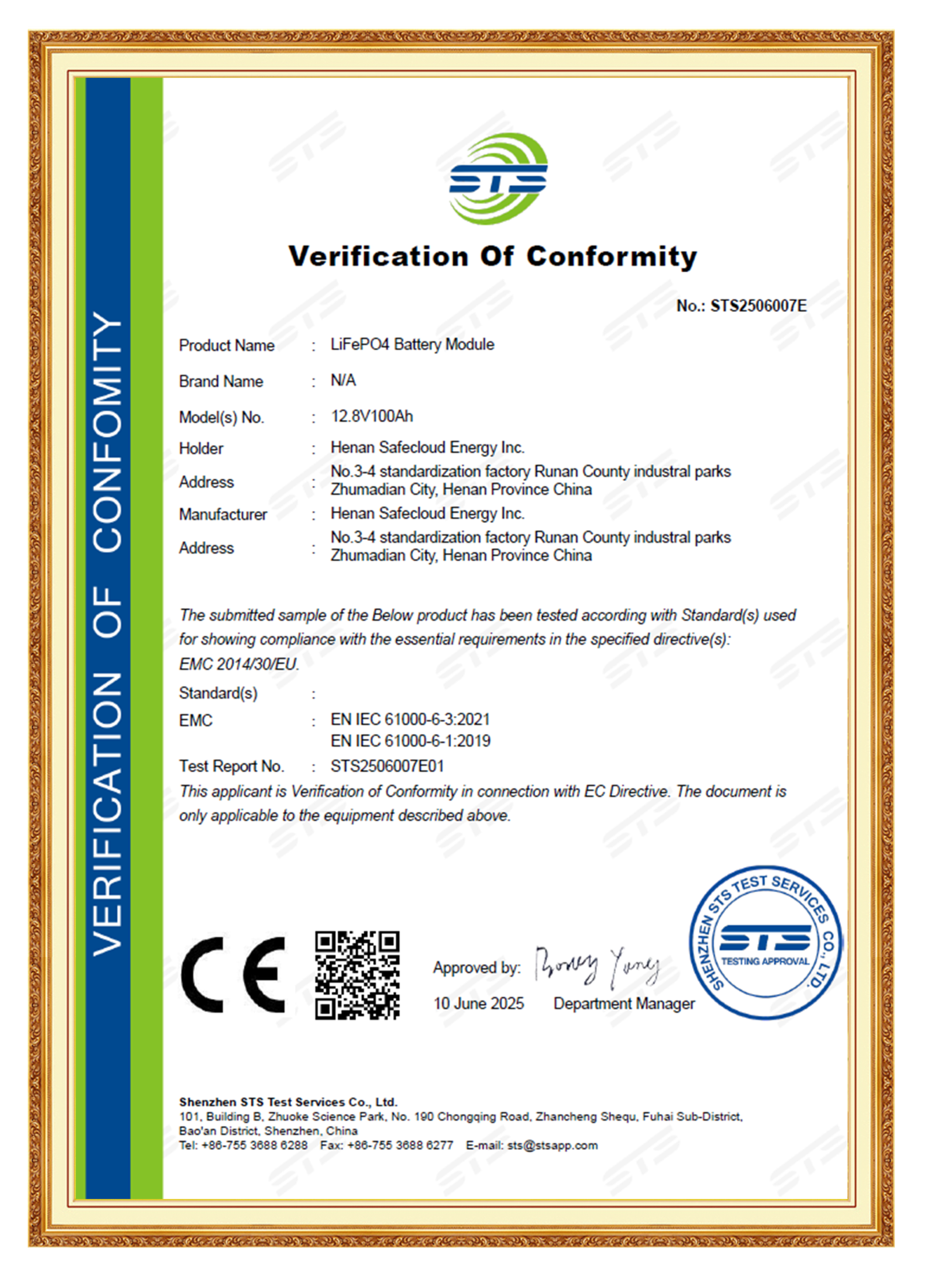

CE
EU Market

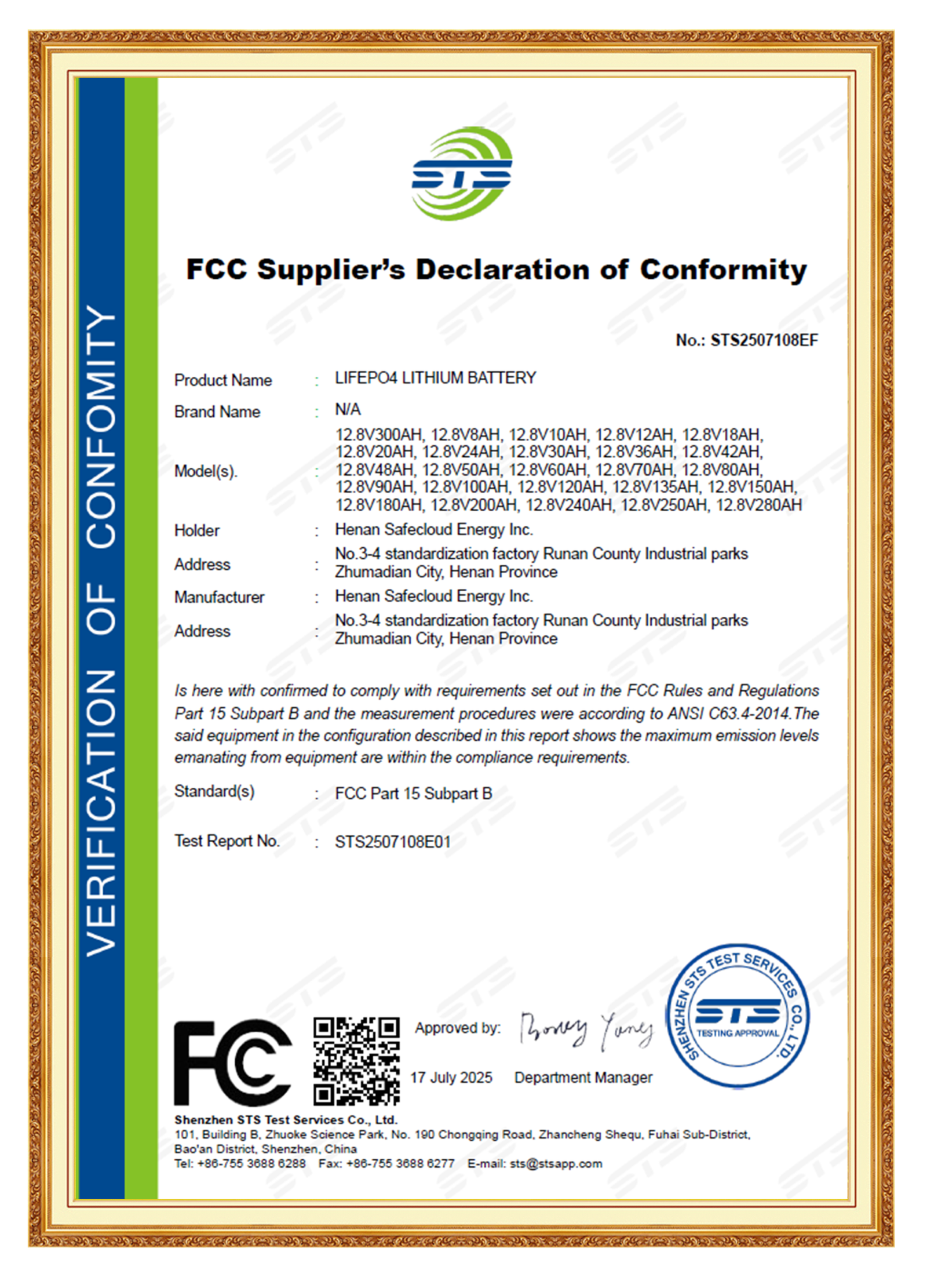

FCC
US Market

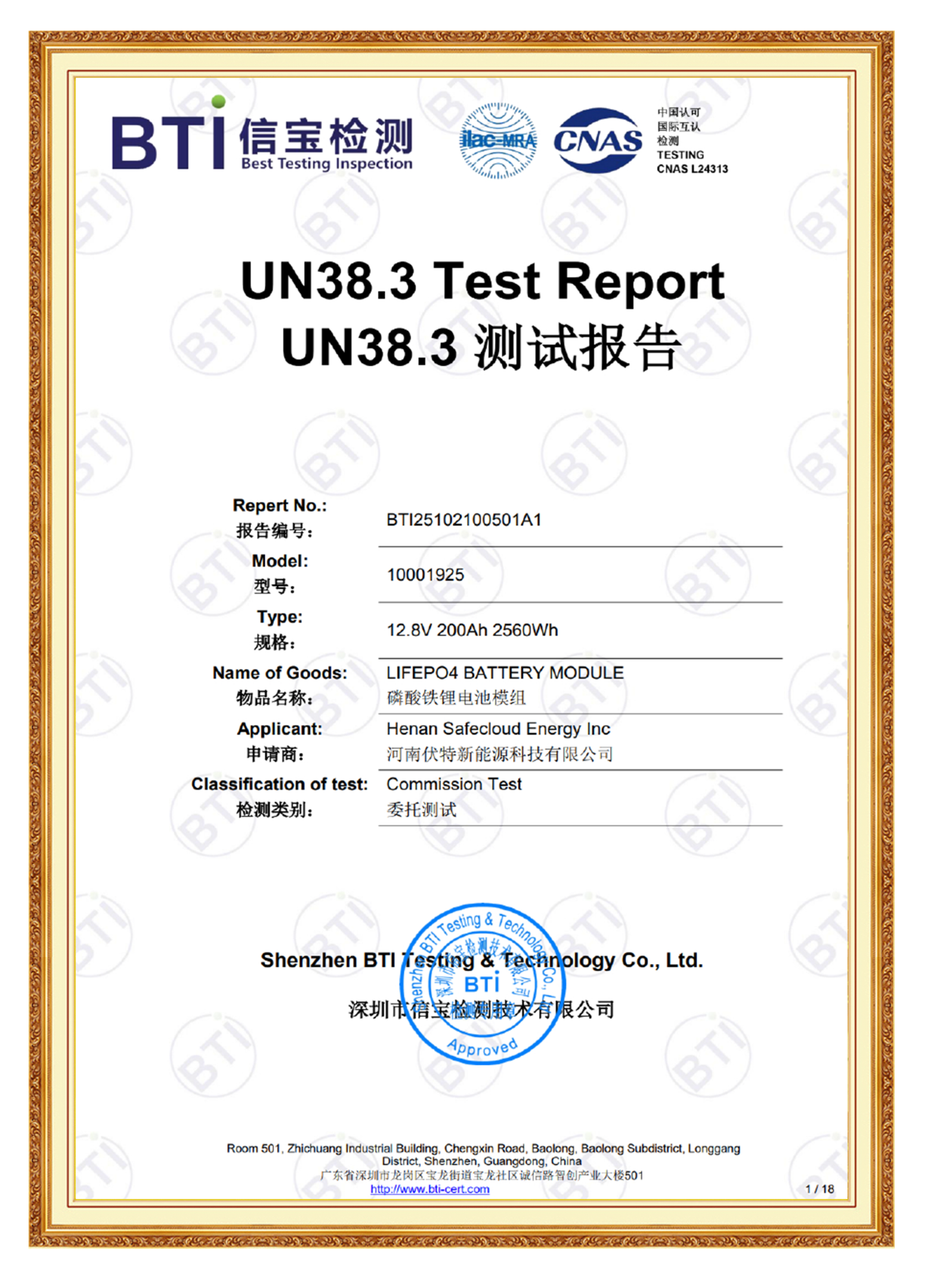

UN38.3
Air Freight

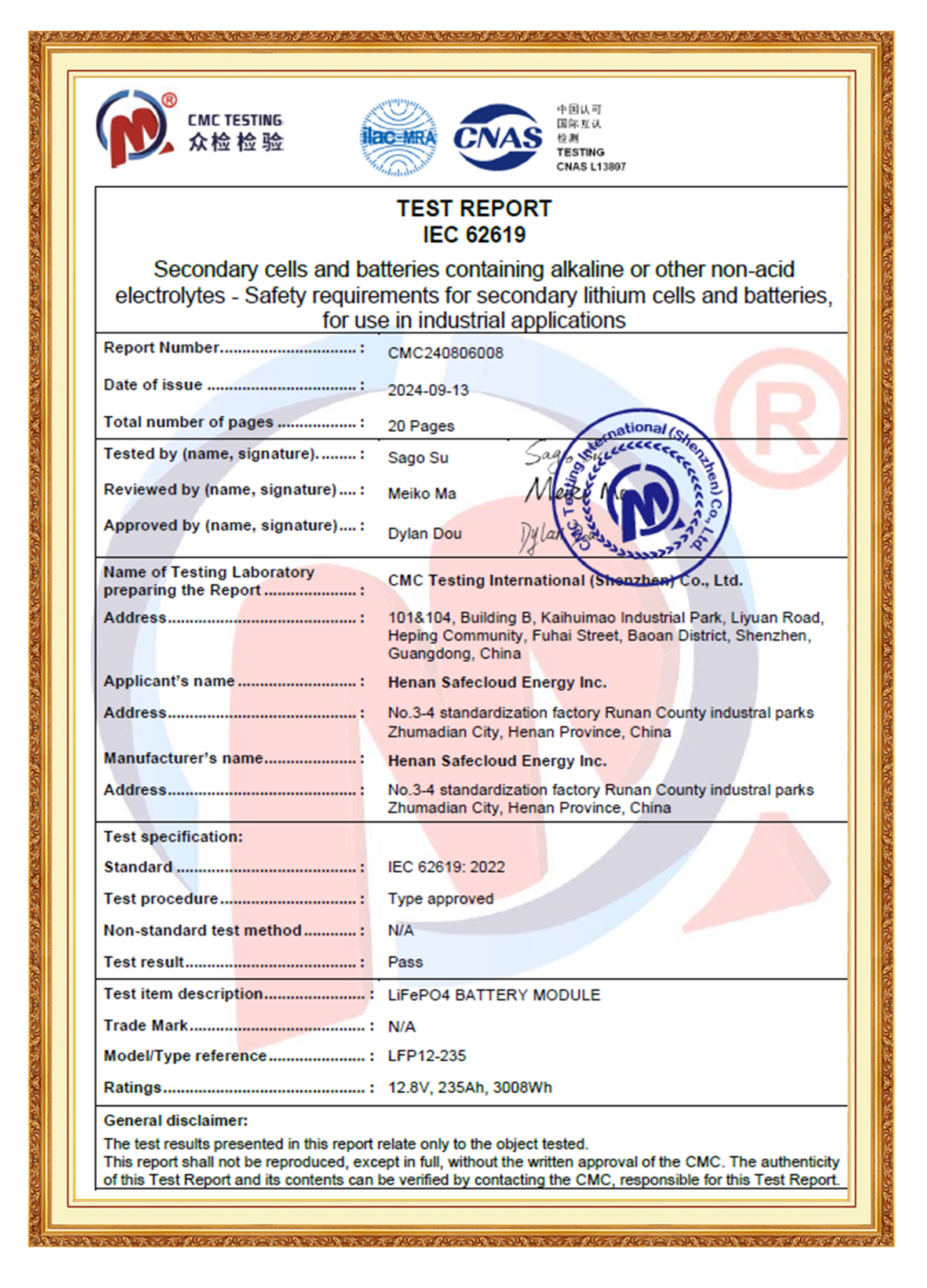

IEC 62619
ESS Safety

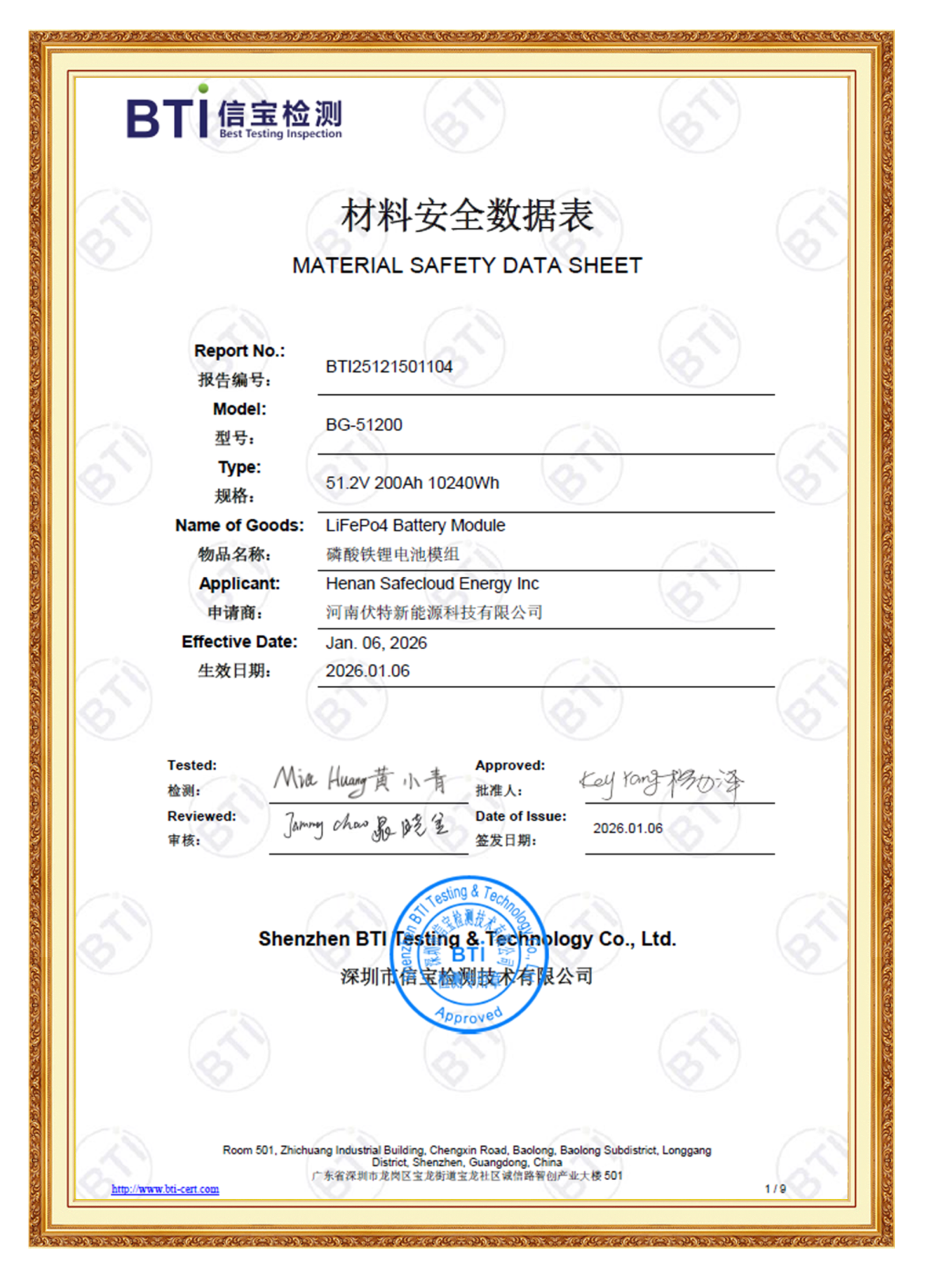

MSDS
EU Market

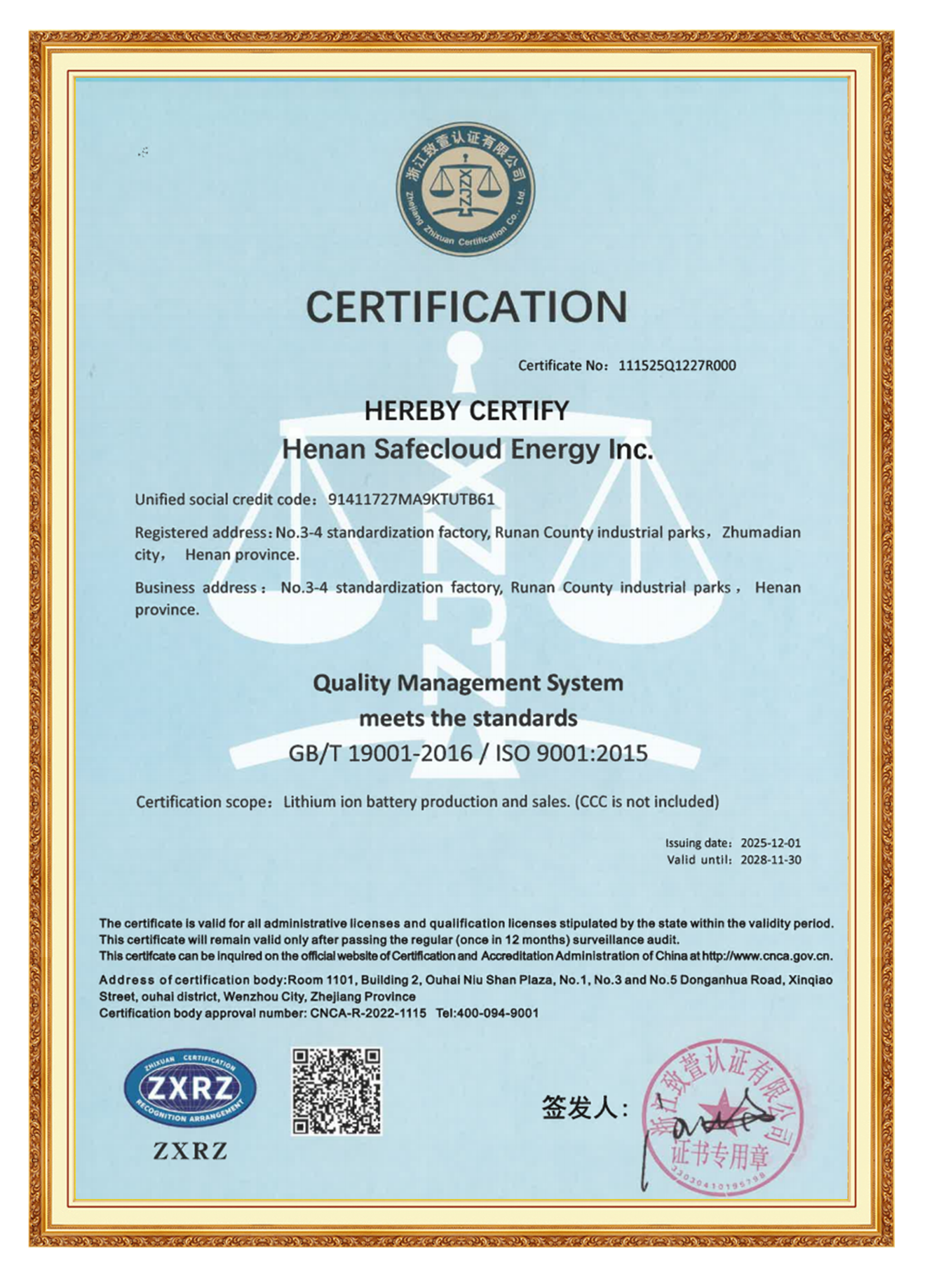

ISO 9001
Quality System
—Use cases
What homeowners use it for

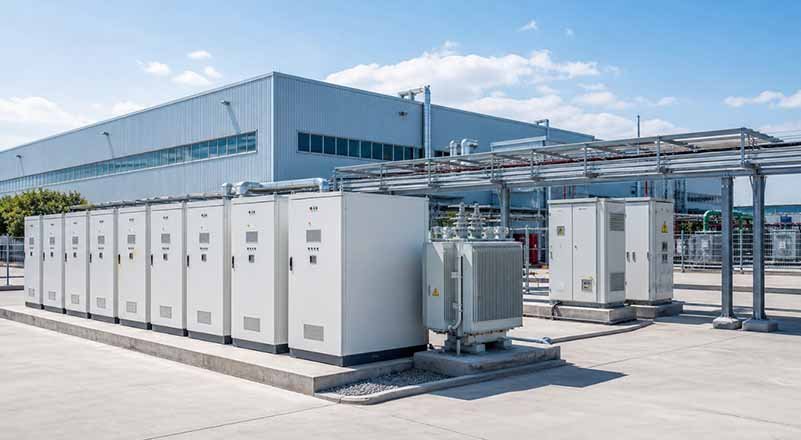

Industrial Parks / Factory Energy Storage Integration
Peak shaving and valley filling, backup power supply, stable power for production lines, and supporting infrastructure for factory projects.

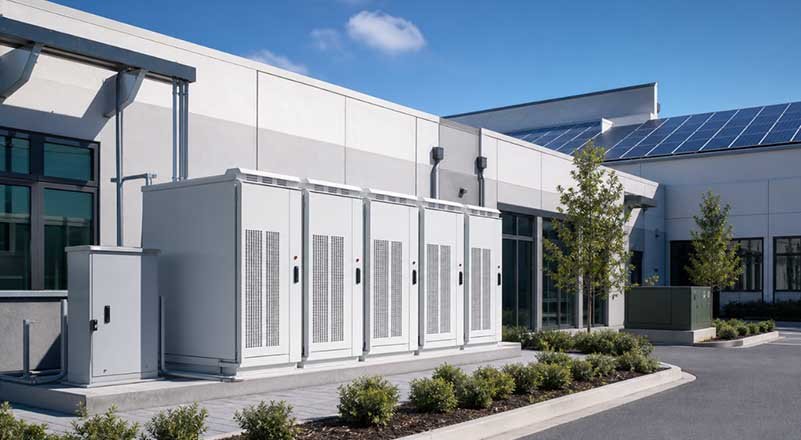

Energy Storage Integration for Commercial Buildings and Complexes
Applications combining solar power and energy storage for commercial buildings such as shopping malls, office buildings, hotels, and schools.

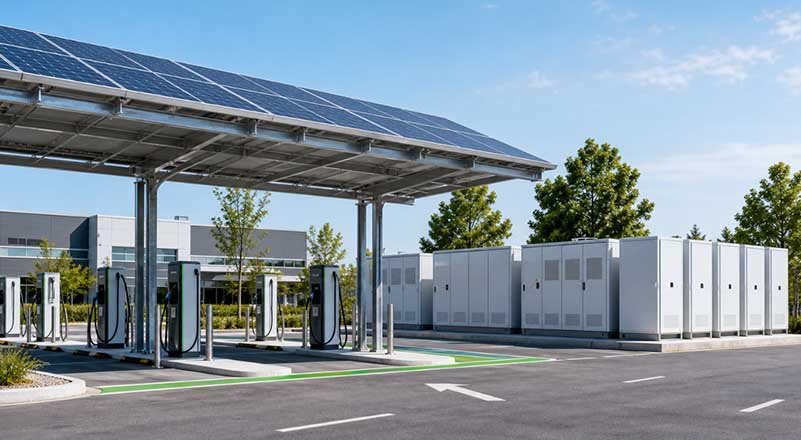

Integrated Solar-Storage-Charging Scenario
Solar PV + Energy Storage + Charging Stations: Highlighting the scenario of new energy infrastructure.

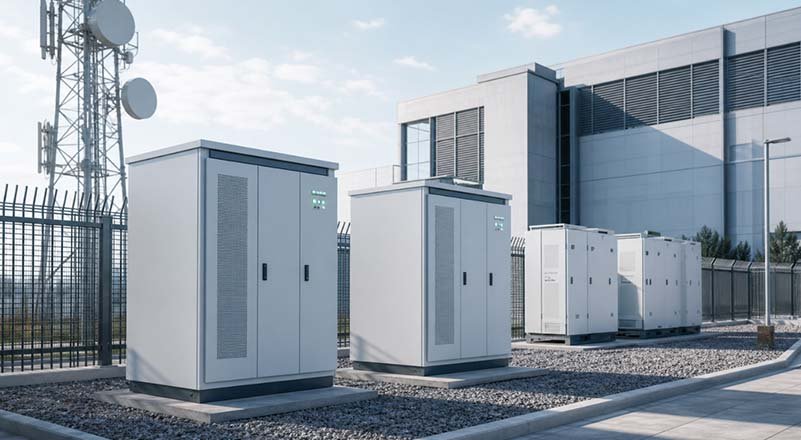

Telecom Base Stations / Data Centers
High-reliability power supply, UPS-grade switching, critical load protection, stability.
—-FAQ
Frequently Asked Questions
Can you size a system for our facility's peak shaving requirements?
Yes. Send us 12 months of 15-minute interval load data (or utility bills) and your tariff structure — our engineering team returns a sizing study with recommended kWh/kW, projected demand-charge savings, and payback estimate as part of the technical proposal.
What documentation do you provide for permitting and insurance?
Every project ships with IEC 62619 and UN38.3 certificates, CE documentation, BMS functional safety description, fire suppression system specs, single-line diagrams, and installation/commissioning manuals — the document set AHJs and insurers typically request.
How does your system integrate with our existing EMS or SCADA?
Standard interfaces are Modbus TCP, CAN, and dry contacts; IEC 60870-5-104 and DNP3 are available for utility-adjacent projects. We provide the full register map and support joint commissioning with your EMS vendor.
What is the warranty and expected throughput?
C&I systems carry a 5-year standard warranty (extendable to 10 years) with a warranted energy throughput clause — we guarantee delivered MWh over the warranty period at defined operating conditions, not just calendar coverage.
Do you work with EPCs on project-specific engineering?
Yes — about 40% of our C&I volume is EPC partnerships. We support site-specific enclosure layouts, altitude/temperature derating studies, PCS brand pairing (Sungrow, Deye, Atess, Sinexcel), and co-branded delivery under NDA.
