5kW 10.24kWh All-in-One Energy Storage System

5kW All-in-One Energy Storage System for Home Backup and Solar Storage

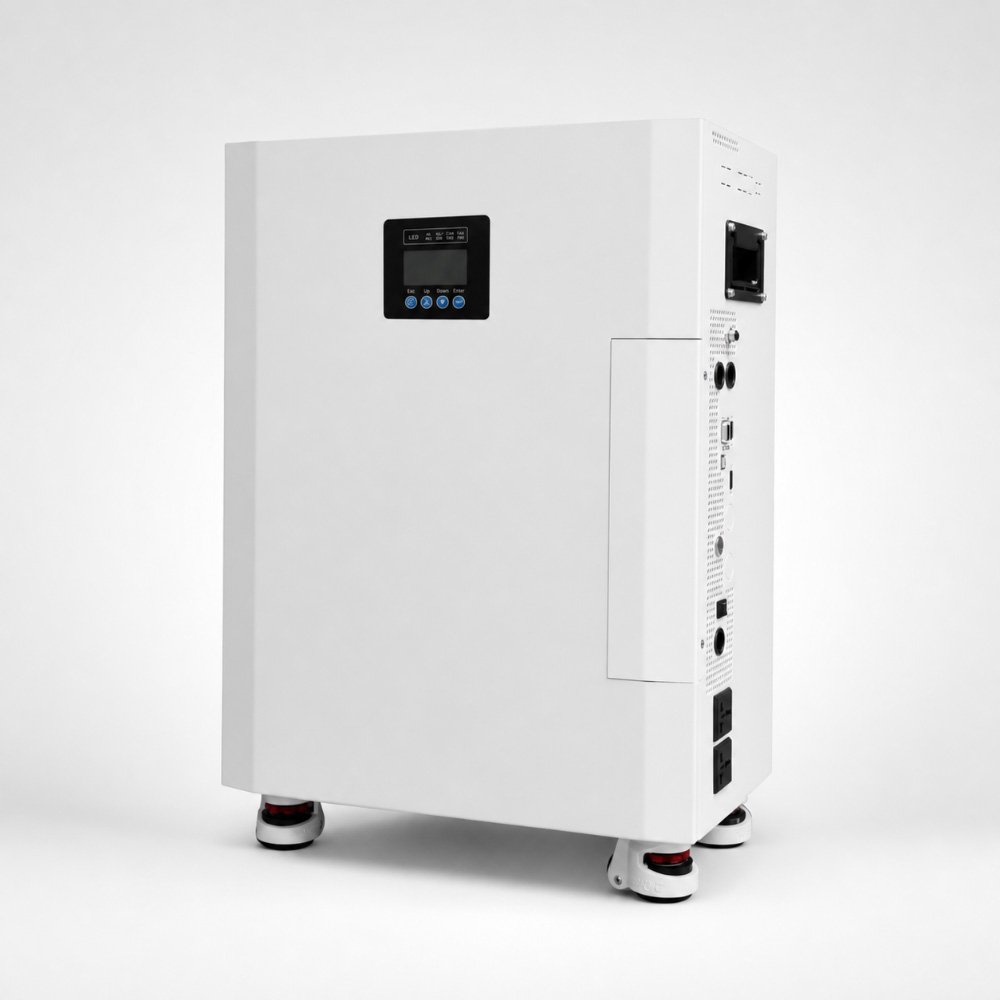

5kW All-in-One Energy Storage System is a mobile home energy storage solution designed for residential backup power, solar energy storage, off-grid power systems, and small commercial energy applications. The AYG10-5KW integrates a 51.2V 200Ah LiFePO4 battery and a 5kW pure sine wave inverter into one compact mobile cabinet, helping users simplify installation and improve system integration.

With 10.24kWh rated battery energy, MPPT solar charging, AC charging support, and RS232/RS485/CAN communication, this all-in-one system is suitable for solar installers, distributors, system integrators, and project buyers who need a complete battery inverter solution for home and light commercial use.

Key Features of 5kW All-in-One Energy Storage System

• Integrated battery and inverter design: Combines a 51.2V 200Ah LiFePO4 battery and 5kW inverter in one mobile energy storage cabinet.
• 10.24kWh battery capacity: Suitable for residential solar storage, home backup power, and small off-grid energy systems.
• 5kW pure sine wave output: Provides stable AC output for home backup and energy storage applications.
• Solar and mains charging support: Supports PV charging input from 120V to 450V, up to 5500W, with MPPT 80A charging.
• Multiple output voltage options: Supports 100V, 110V, 220V, and 230VAC output with ±5% voltage range.
• Communication interface: RS232, RS485, and CAN communication support for system monitoring and integration.
• Mobile cabinet design: Equipped with caster wheels for easier movement, placement, and flexible installation.
• Protection functions: Designed with protection against over voltage, low voltage, overload, short circuit, and over temperature.

Integrated Battery and Inverter Solution

This 5kW All-in-One Energy Storage System is designed to reduce the complexity of separate battery and inverter installation. The system combines battery storage, inverter output, solar charging, mains charging, communication, and protection functions into one cabinet. This makes it practical for residential users and project buyers who need a compact and complete energy storage solution.

The built-in battery section uses a 51.2V 200Ah LiFePO4 battery with 10,240Wh rated energy. The battery charging termination voltage is 58.4V, and the discharge termination voltage range is 44.8V to 46.5V. LiFePO4 chemistry is widely used in energy storage systems because of its stable performance, long service potential, and suitability for repeated charge and discharge use.

5kW Pure Sine Wave Inverter Performance

The inverter section provides 5kW rated power and pure sine wave output. It supports 50Hz and 60Hz input frequency, making it suitable for different regional power system requirements. The output voltage supports 100V, 110V, 220V, and 230VAC with ±5% voltage range, which allows the system to match different application markets and project requirements.

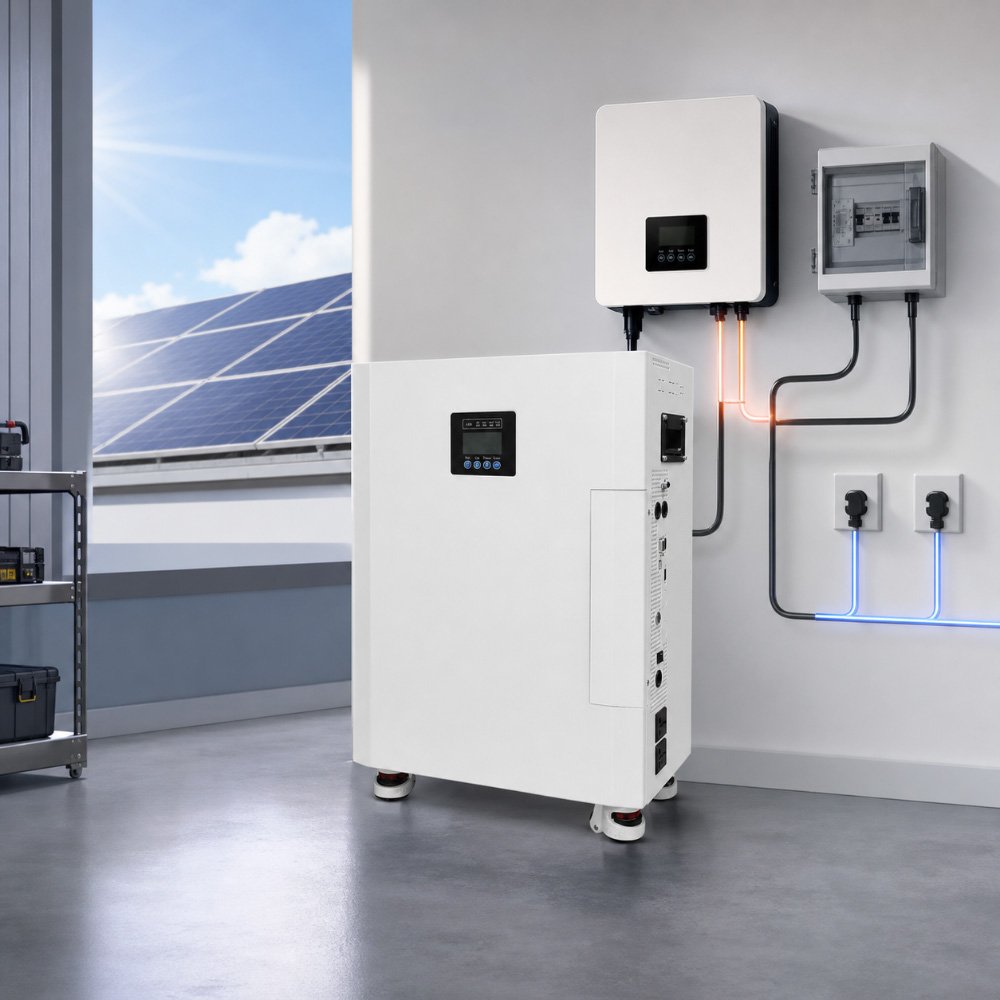

For solar charging, the system supports PV input from 120V to 450V, with up to 5500W solar input. It also supports AC charging current up to 80A and MPPT charging current up to 80A. The recommended solar panel power is around 2000W when the daily average sunshine time is more than 6 hours, depending on the actual project environment.

Communication and System Monitoring

For B2B energy storage projects, communication interface support is important for system integration and monitoring. This 5kW All-in-One Energy Storage System supports RS232, RS485, and CAN communication interfaces, helping installers and system integrators connect the system with compatible monitoring devices or project-level energy management systems.

An optional app module is available for projects that require remote monitoring or smart user interaction. For inverter matching, communication configuration, or system setup, buyers can confirm technical requirements before bulk procurement.

Technical Specifications

Model	AYG10-5KW
System Type	All-in-One Energy Storage System
Battery Type	LiFePO4 Battery
Nominal Voltage	51.2V
Nominal Capacity	200Ah
Rated Energy	10,240Wh / 10.24kWh
Charge Termination Voltage	58.4V
Discharge Termination Voltage	44.8V–46.5V
Rated Power	5kW
Input Frequency	50Hz / 60Hz
Solar / Mains Charging Input	5500W, 120–450V PV + AC 80A, MPPT 80A
Output Voltage	100V / 110V / 220V / 230VAC ±5%
Output Waveform	Pure Sine Wave
Communication Interface	RS232 / RS485 / CAN
Work Environment	Temperature: -20℃~60℃; Humidity: ≤95%; Altitude: ≤4000m
Protection Function	Over voltage, low voltage, overload, short circuit, over temperature, etc.
Product Size	620 × 440 × 240mm
Package Size	755 × 500 × 335mm
Product Weight	79.5kg
Package Weight	90.5kg
Optional Function	APP module available

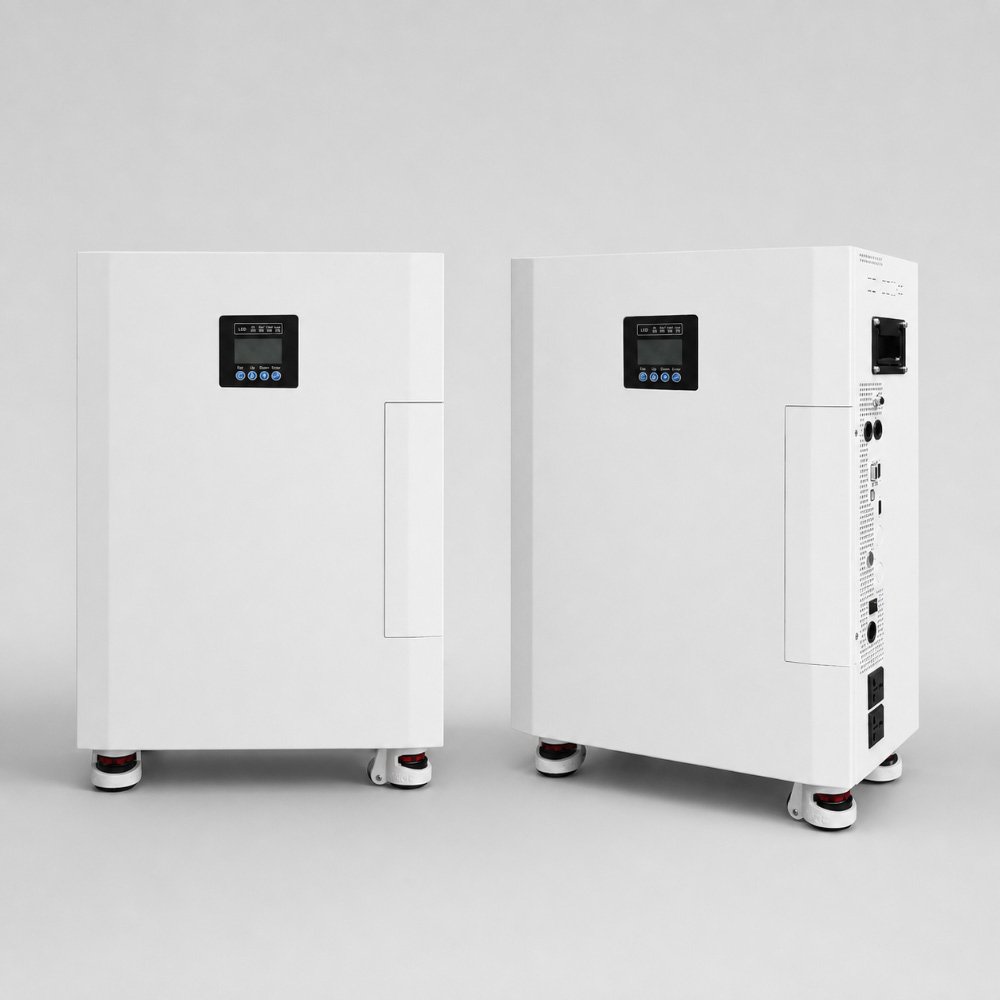

Mobile Cabinet Design for Flexible Installation

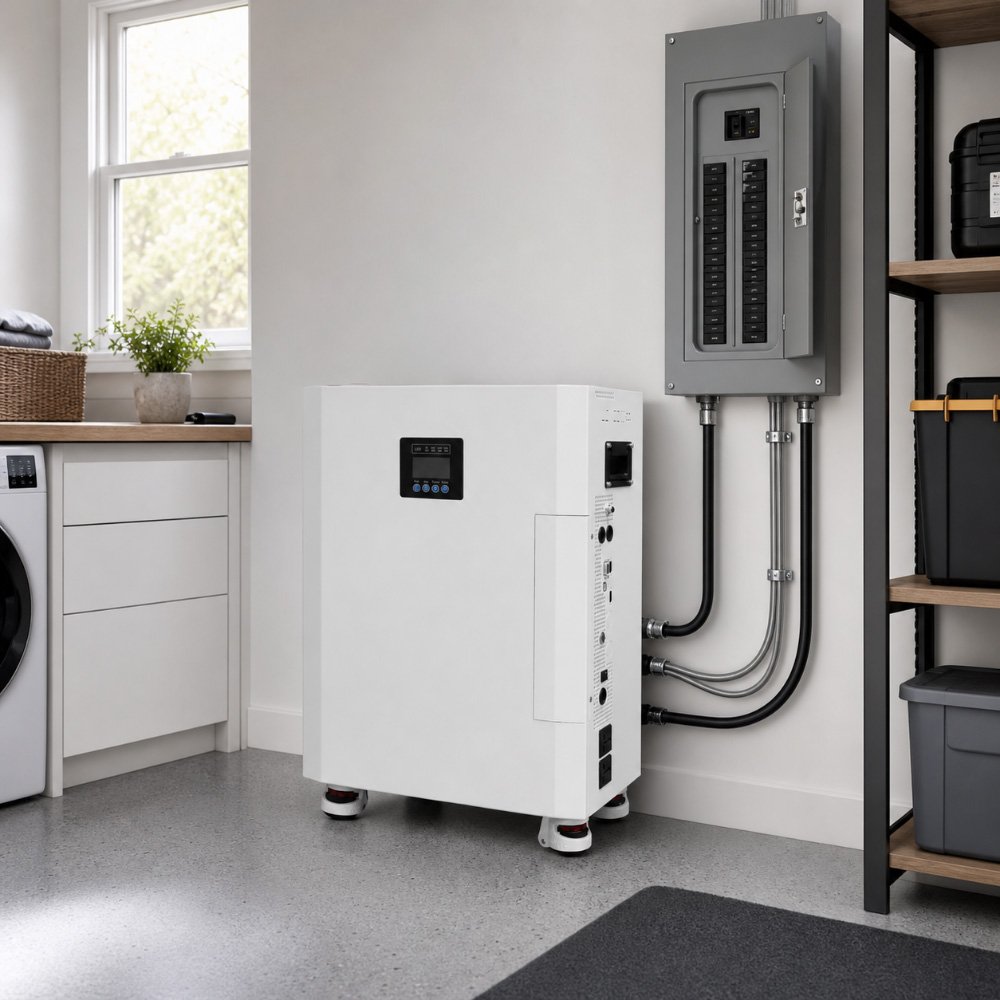

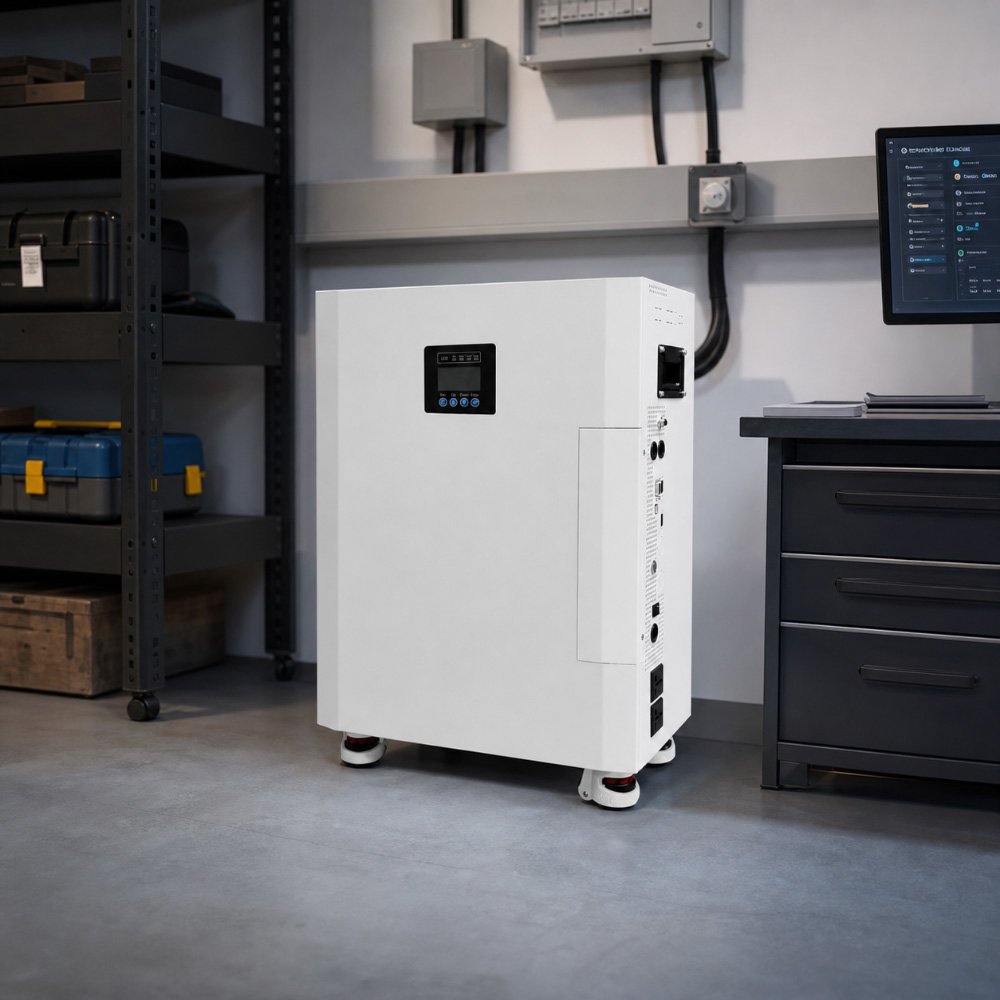

The AYG10-5KW uses a mobile cabinet design with caster wheels, making it easier to move, place, and install compared with fixed wall-mounted or floor-standing systems. This design is suitable for homes, garages, utility rooms, workshops, and small commercial backup power applications.

The integrated structure also helps reduce external wiring and simplifies system planning. For solar installers and distributors, the all-in-one design can make product demonstration, installation, and after-sales communication more straightforward.

Applications

This 5kW All-in-One Energy Storage System can be used in a wide range of residential and light commercial energy storage applications, including:

• Residential solar energy storage systems
• Home backup power systems
• Off-grid solar power systems
• Garage and utility room backup power
• Small commercial backup power applications
• Workshop and office emergency power supply
• Solar installer and system integrator projects
• Distributor and wholesale energy storage solutions

B2B Supply and Project Support

As a B2B all-in-one energy storage product, the AYG10-5KW is suitable for distributors, solar installers, wholesalers, energy storage solution providers, and system integrators. We support bulk orders, project-based supply, technical communication, OEM/ODM cooperation, and system configuration support.

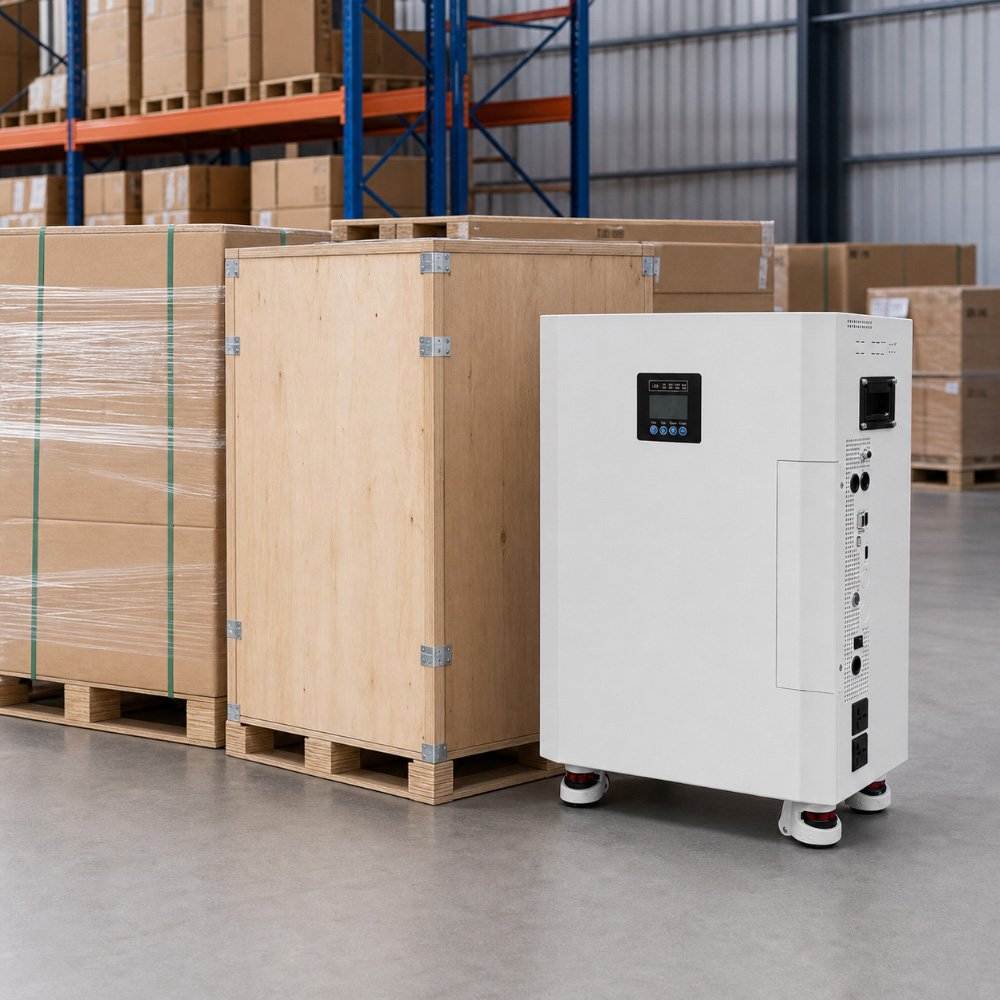

For energy storage projects, buyers may need support with model selection, inverter output voltage confirmation, solar panel configuration, communication interface setup, packaging, and delivery. Our team can provide technical information and project support according to your application requirements.

Why Choose This 5kW All-in-One Energy Storage System?

This system is designed for buyers who need a compact, mobile, and integrated home energy storage solution. With 5kW inverter power, 10.24kWh LiFePO4 battery capacity, MPPT solar charging, pure sine wave output, multiple output voltage options, and RS232/RS485/CAN communication, it is a practical choice for residential backup power and solar energy storage applications.

Whether you are sourcing products for solar storage projects, distributor inventory, off-grid systems, or customized energy storage solutions, this 5kW All-in-One Energy Storage System provides a balanced combination of battery capacity, inverter performance, system integration, and B2B supply flexibility.
